Part Number	S‑Series	P‑Series	C‑Series	X‑Series
Max Total Output Power	2400W/3000W/3300W/4200W	4200W/4500W	3000W/4000W	3300W/4000W/4500W

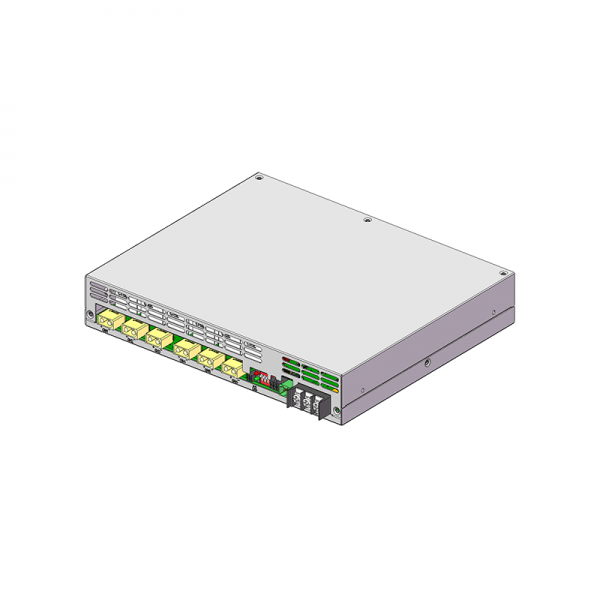

Typical Model	CPS‑H‑4200‑1TN‑90‑20	CPP‑H‑4200‑1TN‑90‑20	CPC‑H‑4000‑1TN‑90‑15	CPX‑H‑4000‑1TN‑90‑25
Output Channels	3‑6 channels	3‑6 channels	3‑4 channels	3‑6 channels
Input Voltage Range	160‑280VAC
Output Voltage Range	20~90.3V			40~90.3V
Max Total Output Current	20A	20A	15A	25A
Max Single‑Channel Output Power	1500W	1500W	1350W	1800W
Max Auxiliary Output Power	120W (96V/1.3A)
Peak Efficiency	>95%	>95%	>95%	>95%
Communication Interface	RS485 / CAN optional
Output Connector	XT60 / Barrier terminal optional
Operating Temperature	‑20‑70℃
Applicable Battery Types	36/48/60/72V batteries
Configuration Options	Reverse power supply / External DC‑DC connectable	Isolated auxiliary source / Redundancy / Reverse power supply / Cyclic charging	Zero‑power version	Integrate PV, energy storage, charging, battery‑swap and backup functions; battery‑to‑battery charging; smart PV access

BP-F-3000-12-ML air-cooled power supply

BP-H-3500-13-R-CL air-cooled power supply

BP-H-3640-13-R-CL air-cooled power supply

BP-H-5000-13-R-HS air-cooled power supply

BP-H-6000-19-R-CL air-cooled power supply

Water-cooled power supply BPS-H3-8000-20-R-BG

Water-cooled power supply BPS-H3-10000-40-R-HS

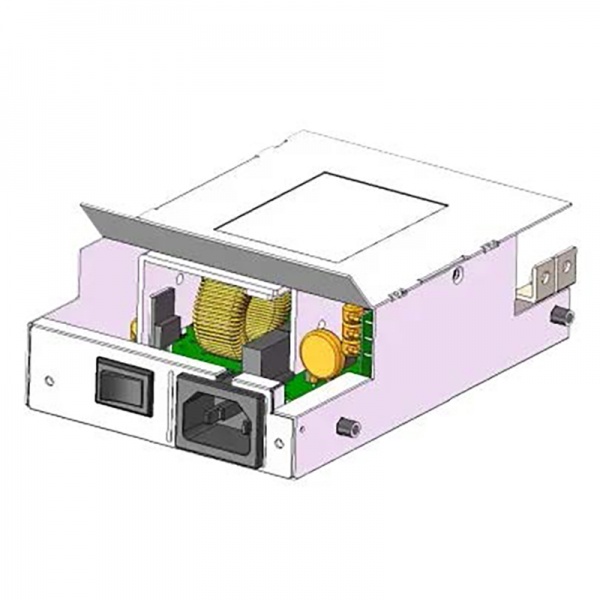

Silent Power Supply BP-F-500-12-A

Silent Power Supply BP-F-600-12-R-ML

Silent Power Supply BP-F-850-12-A

Silent Power Supply BP-F-1200-12-ML

Silent Power Supply BP-F-1400-12-R-QL

Power supply for battery swapping cabinet

算力电源

Product Parameters	BP‑F‑1400‑12‑R‑QL	BP‑H2‑5000‑13‑R‑BG	BPS‑H3‑8000‑20‑R‑BG	BPS‑H3‑10000‑40‑R‑HS
Product Type	Silent Power Supply	Air‑cooled Power Supply	Water‑cooled Power Supply	Water‑cooled Power Supply
Cooling Method	Air‑cooled	Air‑cooled	Water‑cooled	Water‑cooled
Input Voltage Range	100‑240VAC	180‑280VAC	380‑480VAC	380‑480VAC
Rated Output Power	1400W	3300‑5000W	8000W	10000W (Main Channel)
Output Voltage Range	11‑14.5V	11‑15V	19‑24Vdc	34‑45Vdc
Max Output Current	120A	300‑400A	400A	294A
Efficiency	96%@230Vac	97.2%	96.5%@400Vac	97.5%@400Vac
Max Auxiliary Output	12V/4A	12V/20A	12V/1A	7V/2A
Communication Interface	PMBUS	PMBUS	PMBUS	PMBUS
Operating Temperature	‑20~55℃	‑20~55℃	Inlet Water Temp ≤70℃	Inlet Water Temp ≤70℃
Certifications	CE/FCC/IC	CE/FCC/IC/ROHS	CE/FCC/IC/ROHS	CE/FCC/IC/ROHS
Control	Supports remote PSON enable switch	Supports remote PSON enable switch	Supports remote PSON enable switch	Supports remote PSON enable switch

DIN rail power supply PACFS24020A

DIN rail power supply PACFS24012A

Rail power supply PACFS24010C

Industrial power supply SP-F-600-48-A

Industrial power supply

工业电源

Product Name	SP‑F‑600‑48‑A	PACFS24010C	PACFS24012A	PACFS24020A
Product Type	Industrial Power Supply	100% Domestic DIN‑Rail Power Supply	100% Domestic DIN‑Rail Power Supply	100% Domestic DIN‑Rail Power Supply
Input Voltage Range	80‑265V	85‑264Vac	85‑264Vac	85‑264Vac
Output Voltage Range	48V	24Vdc	24Vdc	24Vdc
Max Total Output Current	6A	10A	10A	20A
Max Total Output Power	600W	240W	300W	480W
Efficiency	95.5%	95.5%@220Vac	95.5%@220Vac	95.5%@220Vac
Operating Temperature	‑40‑75℃	‑40‑70℃	‑25~60℃	‑25‑60℃
